Introduction to Traveling Wheel Box of Crane DRS 112
Philson intelligent equipment produces and sells DRS wheel block system,It is widely used in stacker drive system and crane traveling mechanism. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
DRS serial wheel block: DRS112/DRS125/DRS160/DRS200/DRS250/DRS315/DRS400/DRS500
Our products are now traded worldwide. It is quality not price that sells our products.
DRS 112 MA30-B-0- BXX
Manufacturer: Philson
Type: Wheel Block System
Model: DRS 112 MA30-B-0-B-X-X
Reference: 90/B01/503316
Travel Wheel Diameter: 112 mm
Travel Wheel Type: no flange, spheroidal graphite cast iron
Connecting Variant: Pin Connection
Wheel block prepared for accessories: with no guid roller assembly
Wheel load per wheel: max. 3500 kg / under the standard condition
Ambient Temp.: -20 to +40 °C
Weight: 6.2 kg

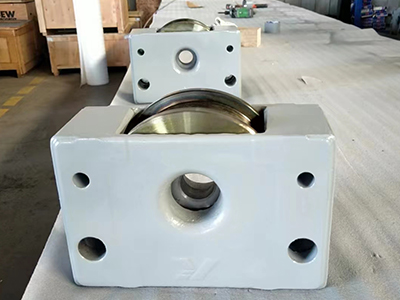

Crane DRS112 wheel block/European Crane End Carriage Wheel Block
Crane drs112 wheel block sets are mainly used for single and double beam cranes. According to the tonnage and working environment of the crane, the crown block wheel sets are as follows: for double beam cranes with less than 50t, the crane wheel adopts double rim structure, the bearing adopts seven kinds of conical bearings, the bearing box adopts angular structure, and each group of wheels adopts four groups of bearings.
European Crane End Carriage Wheel Block
Generally, the single rim structure is adopted, and the bearing box also adopts the angular structure. Two groups of seven types of bearings are selected for each group of wheels. The wheels are cast steel wheels. For the wheels of large tonnage crane with more than 50 tons, we generally adopt heavy-duty wheel groups, the wheel blades are double rim structure, the bearing box adopts angular or circular structure, the bearing box is generally cast steel bearing box, and the bearings adopt three types of bearings.
Crane DRS112 wheel block system
Cast or forged wheels are adopted. The trolley wheel group also adopts double rim structure. Three types of bearings are adopted, and the bearing box is cast steel bearing box.
