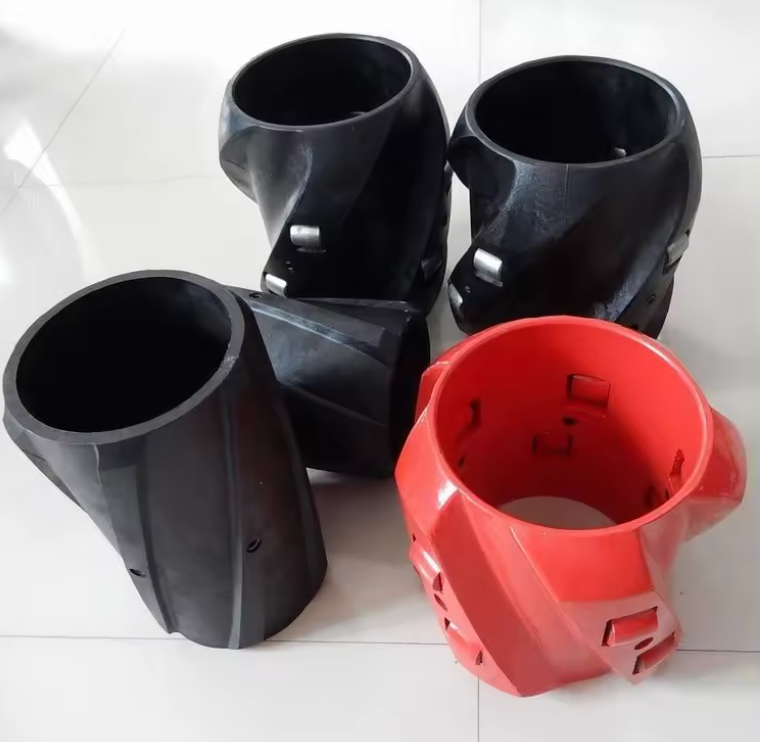

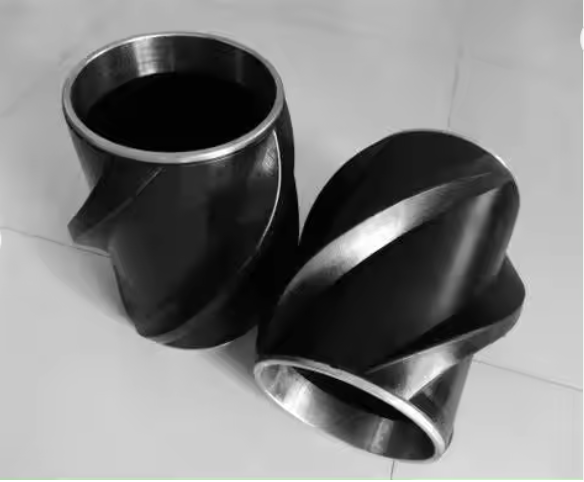

Polyurethane casing centralizer, also known as polyurethane drilling centralizers, is the cable accessory used during the installation of pipes (casing) in oil or natural gas Wells. its primary function is to ensure that the casing is in the correct position in the wellbore and to keep it in the desired position in order to successfully complete the casing sinking process.
The polyurethane casing cntraliser is made of advanced composite materials with a low coefficient of friction, heat resistance and is extremely durable. The composite works dependable even under extreme borehole conditions. The polyurethane material, in contrast to many plastic centralizers, is more extremely wear-resistant and able to sustain high impact loads.
Benefit
• Minimize conductor movement and harm to the conductor and jacket guide.
• Significantly reduce flowline and tree movement
• adds concentricity
• Improve fatigue life, strength and stability
Application
• Water wells
• Ground investigation
• Dewatering
specification and dimension
Casing Size | Minimum Hole | I.D. | O.D. | OAL |
139.7(5-1/2) | 215.9(8-1/2) | 143(5-5/8) | 211(8-5/16) | 260(10-1/4) |
177.8(7) | 215.9(8-1/2) | 181(7-1/8) | 213.4(8-13/32) | 260(10-1/4) |
244. (9-5/8)5 | 311.15(12-1/4) | 247.5(9-11/16) | 305.4(12-1/64) | 260(10-1/4) |
339.7(13-3/8) | 406.4(16) | 344(13-35/64) | 402(15-53/64) | 260(10-1/4) |
The use of polyurethane casing centralizer in terms of the operation is crucial to protect the wires between the platform structure and the well. Our in-house team of experienced design engineers provide a complete centralizer kits to meet a range of operational requirements; From initial design to project management and installation, including bespoke centralizer designs across a variety of operations.
