In the harsh environments of offshore wind and subsea oil & gas, the integrity of power cables and umbilicals is paramount. A single failure due to over-bending can lead to catastrophic downtime and multi-million dollar repair costs. This is where the Boltless Bend Limiter (BBL) becomes an essential safeguard.
What is a Boltless Bend Limiter?

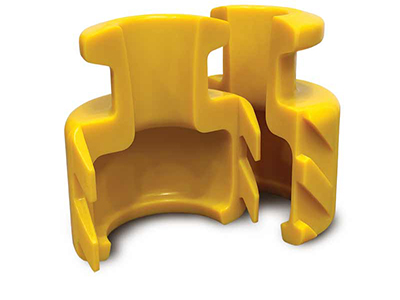

A Bend Limiter is a modular system composed of interlocking vertebrae. When a cable is subjected to external forces—such as ocean currents or installation tension—these vertebrae lock together to create a rigid arc. This ensures the cable never exceeds its Minimum Bend Radius (MBR).
The "Boltless" innovation replaces traditional mechanical fasteners with a high-strength, interlocking design, making it the preferred choice for modern offshore projects.
Key Features and Benefits
1. Rapid, Tool-Free Installation: Time is money at sea. The boltless design allows for quick assembly on the vessel deck without the need for torque wrenches or complex fastening procedures, significantly reducing labor hours.
2. Superior Corrosion Resistance: By eliminating metallic bolts and nuts, the system removes the primary risk of localized corrosion. This ensures the structure remains intact for a design life of 20+ years in high-salinity environments.

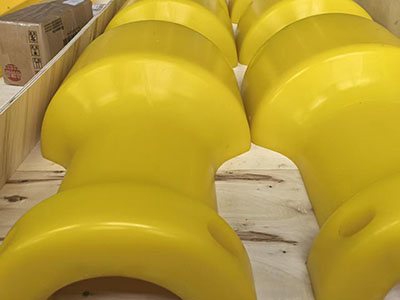

3. High-Grade Polyurethane Construction: Typically manufactured from high-performance Polyurethane (PU), these limiters offer an ideal balance of impact resistance, durability, and buoyancy control.
4. Interlocking Vertebrae Design: The precision-engineered joints provide a smooth transition of loads, preventing "point loading" that could damage the cable's internal insulation.
Typical Applications
1. Offshore Wind: Protection for inter-array and export cables at the foundation interface (J-tubes or I-tubes).
2. Subsea Umbilicals: Safeguarding the connection points between floating platforms and subsea hardware.
3. Tidal & Wave Energy: Durable protection for dynamic cables in high-velocity water environments.
Why Choose Our Boltless Solutions?
Our transition toward engineering-led solutions means we don't just provide equipment; we provide peace of mind. Our Boltless Bend Limiters are rigorously tested for fatigue resistance and load-bearing capacity, ensuring your offshore assets remain operational in the most demanding sea states.
