Subsea Cable Bend Stiffeners, also refers to bend restrictors, are used to support flexible pipes, umbilicals, and cables when connected to rigid structures or floating production systems, ensuring control over the minimum bend radius of the pipe. They are typically attached at the topside or seabed connection points.

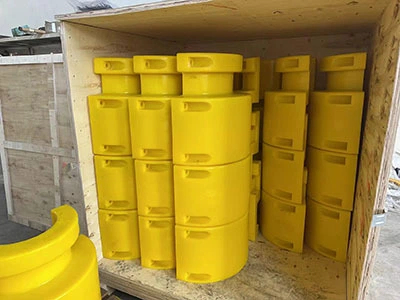

Bend limiter designed by Philson provide essential protection against cable overbending at the exit of the J-tube bell-mouth, preventing damage to submarine cables. Their diverless design allows for direct assembly onto the cable before laying, eliminating the need for underwater operations. These cable bend restrictors come equipped with a coupling flange to accommodate Philson J-Tube Seals or Centralizers.
The design takes into account factors such as cable diameter, minimum bend radius (MBR), and the distance between the J-tube exit and the seabed. Made from durable polyurethane, they offer excellent protection against mechanical bending stresses and basic safeguarding against impacts from falling objects near the platform. The modular design also enables the customization of protection length to meet specific project requirements.
CABLE DIAMETER RANGE AND MBR
- from 110 mm up to 150 mm
- MBR 4500 mm
MATERIAL:
- Bend limiter body : MTA31 Hard Polyurethane
- Bolts & Nuts : AISI 316 A4
ENTRY DATA FOR DIMENSIONING:
- Cable diameter and minimum bending radius
- Installation condition and free span distance between j-tube bellmouth and seabed
We are able to offer either a bespoke design or make use of a vast array of existing designs of bending restrictor elements to suit a wide range of pipes, umbilicals and cables. We are also able to design and manufacture the steel interface structure required. Philson provides a full product offering from design, material selection, functional steelwork, moulding through to validation. Contact us today to learn more marine cable protection solutions.
